Quick Mount for Right or Left Side Attachment
Click Here For The Bike Tow Leash Installation Chart
Includes:
- (1) Quick Mount Plate
- (1) 5 mm Recessed Nut
- (2)12 mm external toothed lock washers
- (1) 5 mm Bolt
- (1) flat washer
- Instructions

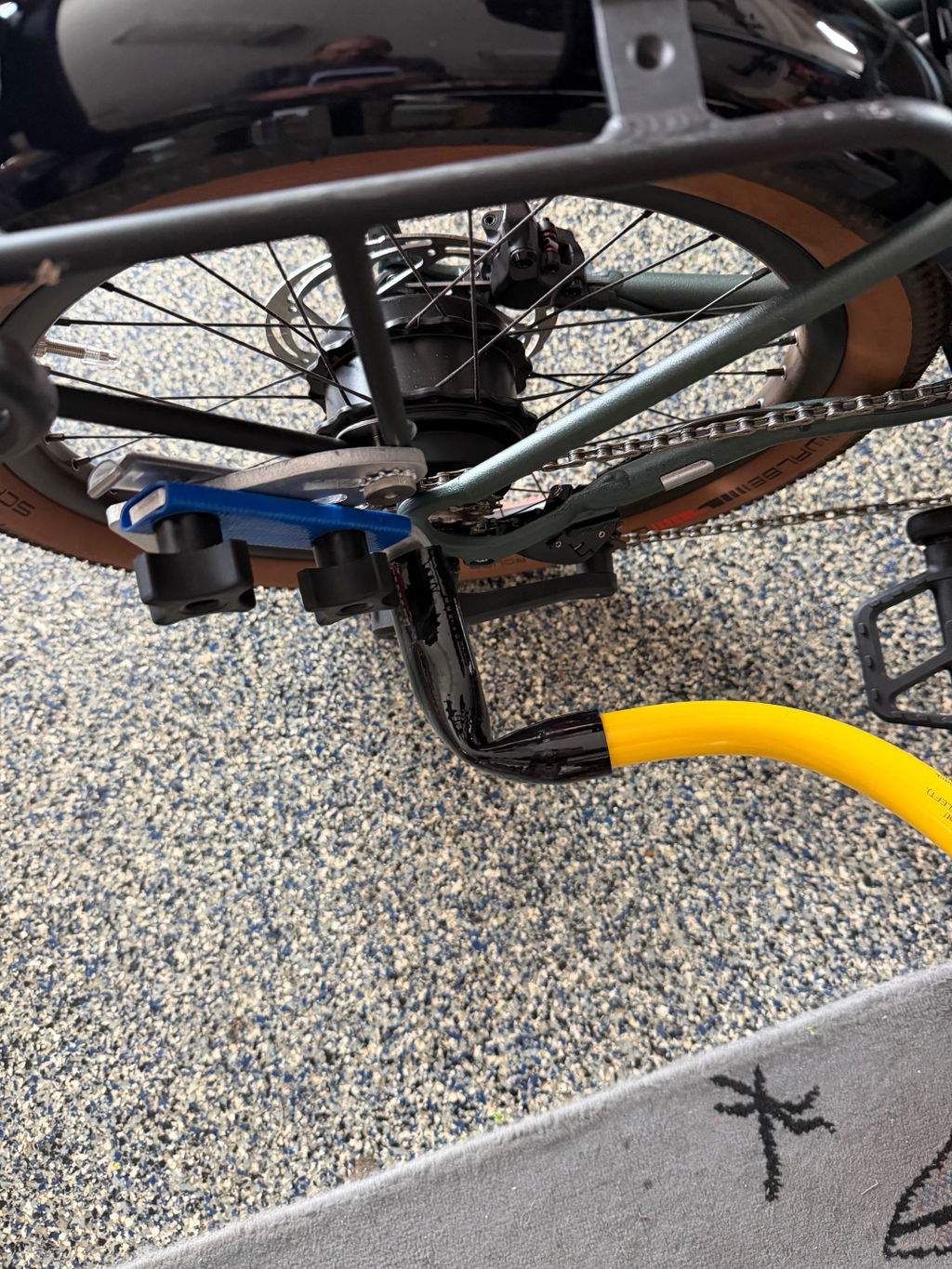

For mounting Dog Bike Leash on right side of bikes without hitting the chain. Also, provides extra ease of sharing the Bike Tow Leash between bikes, and rapid adjusting for different dog heights. Use requires minimum of 5/8 inch (16 mm) flat or open area surrounding the rear axle. For solid axles 3/8 or 9 mm diameter, with hex nuts on both sides, you need 1/4 inch (6 mm) available axle length.
Installed you will have 5 full turns of thread engagement on the nut. For bikes with quick release lever and 5 mm dia. skewers as shown, extra axle length is not necessary. Comes with a 5 mm recessed axle nut, 5 mm bolt to engage slot and threaded hole in frame for extra security. Instructions included.
*This is the Quick Mount accessory. Bike Tow Leash sold separately.
